Speaker Enclosures - PF+ Series

• Solid CNC cabinet made from original Russian birch plywood Tongue and groove CNC cabinet design
  ensures low resonance.
• Customized Beyma & Faital driver with extremely low distortion (average H2 distortion＜2% and
  average H3 distortion <0.5%)
• Passive crossover & selectable BI-AMP function
• Perfect Phase Response and unique DMFTM composite material HF horn design with rotatable
  dispersion angle(H°×V°) 90°×60° which results in very smooth HF and low-end distortion
• Smart crossover with American Benelec XPP audio capacitor, customized metal resistor and manually
  soldered fibre board to ensure stability and consistency and zero consumption, even with very high
  dynamic sound pressure.
• Unique driver protection circuit design to ensure safety of speaker
• Comprehensive accessories available for transportation, installation and suspension of loudspeakers

< Back

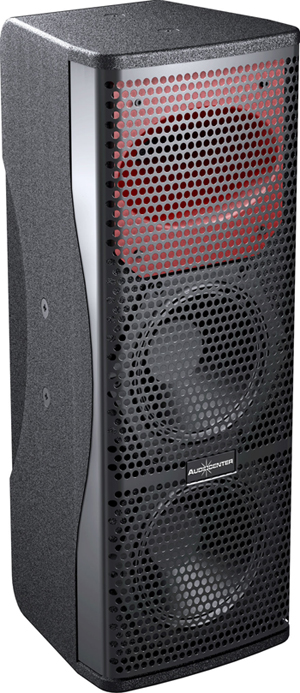

PF26+

• Frequency response: 63Hz～20KHz
• Power capacity：240W(AES stand）
• Impedance：4Ω

Application:
The PF+series is suitable for near field main reinforcement PA systems, touring systems, fixed installations such as wall mounting, stand mounting and ceiling mounting. They are also suitable for stage monitoring and can be used for side-fills and back line etc.

PF115B+

• Frequency response: 35Hz～300KHz
• Power capacity：700W(AES stand）
• Impedance：8Ω

Application:
For bass reinforcement in a main PA system such as touring systems, medium and large fixed installation, stadiums, night clubs, arenas, auditoriums and theatres etc.

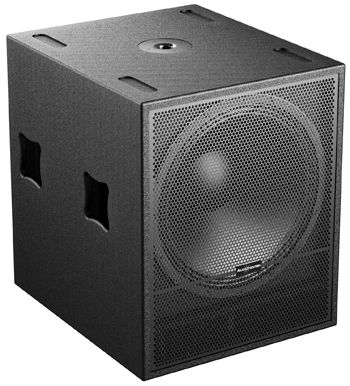

PF118B+

• Frequency response: 32Hz～300KHz
• Power capacity：800W(AES stand）
• Impedance：8Ω

Application:
For bass reinforcement in a main PA system such as touring systems, medium and large fixed installation, stadiums, night clubs, arenas, auditoriums and theatres etc.
