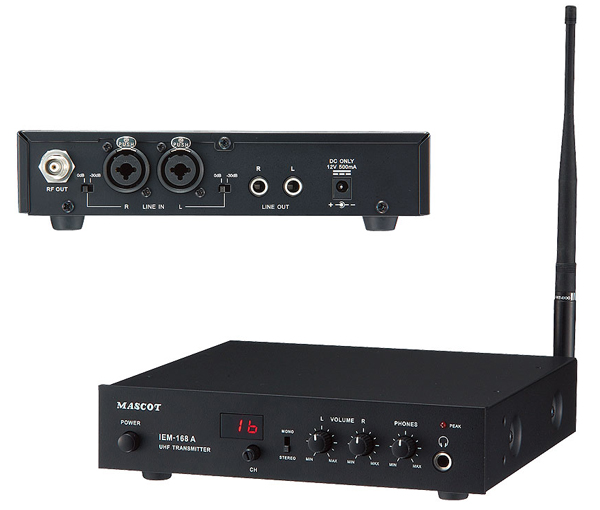

In-Ear Monitor - Transmitter

IEM-168

Features

• Carrier Frequency Range: UHF 630 ~ 928MHz.
• Professional PLL synthesized control with 16 preset UHF frequencies.
• Operating in stereo or stereo mode.
• Half 19'' EIA standard rack mountable case.
• Combine two transmitters in a 19'' rack by using optional rack mount kit.
• One XLR combo connector for balanced and unbalanced Inputs.
• Two 1/ 4 unbalance input for Mic in and Line in, two RCA jacks for various audio compatibility.
• Power ON knob and volume control for status monitoring.
• Front panel monitoring headphone jack.
• Detachable antenna with TNC-type connector.
• FCC, CE , RoHS Conform.

Specifications

• Type : Stationary
• Frequency Range : UHF 630 - 928 MHz
• RF Power Output : 10mW or 100mW
• Oscillator : PLL Synthesized
• Frequency Stability : ± 0.005%
• Maximum Deviation  : ±48KHz with limiting compressor
• Spurious Emission : >60 dB below carrier frequency
• T.H.D.  : <1% (at 1KHz)
• Battery : DC 12~18V(adapter
• Tone Key : STEREO: 19KHz Pilot signal
• Mic Unit : NONE
• Display : LED
• Current Consumption : 85mA ± 10mA (10mW)
                                   140mA ± 10mA (100mW)
• Dimension (mm)WxHxD : 211 x 44 x 180

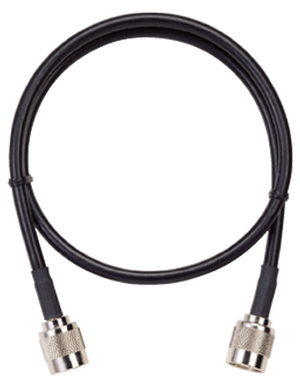

TT-50

Features
Connection cable for antenna divider/antenna booster and receivers. Available cable length: TT-50: 50cm, TT-100: 100cm, TT-1000: 10M or optional choice.

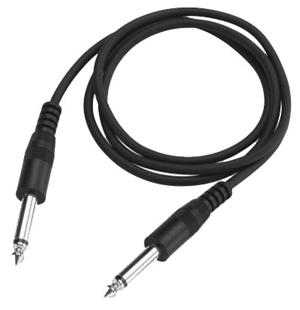

CB-405

Features
• 6.3φ plug / 6.3φ plug.
• instruments or other recording equipment.

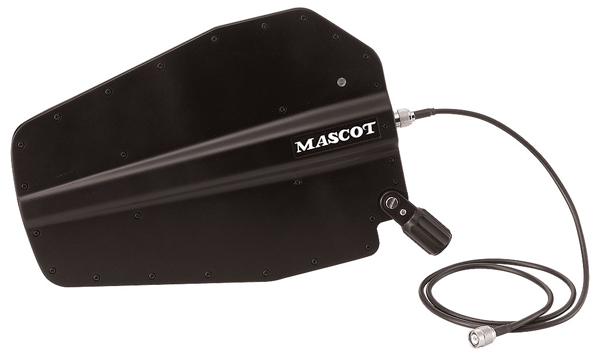

AU-9

Features
• UHF Wideband (500 ~ 950MHz) Frequency Range.
• It can improve the transmission quality and efficiently in coverage area.
• The 50Ω impedance can compensate for coaxial cable signal loss and increase the antenna gain.
• The sealed structure is suited for indoor or outdoor use, and against various weather environments.
  Ensure it's performance.
• Adjustable connector design allows it to be mounted on a microphone stand, wall or suspended
  from the ceiling.

Specifications
• Frequency range : 500 ~ 950MHz
• Voltage Wave Standing Ratio <VSWR> : < 2
• 3dB beam-width : 80° E-Plane, 140° H-Plane
• Connector : TNC Female
• Dimension (mm) W*D*H : 295 x 210 x 31
