PV® Series Crossovers


PV Series Crossovers incorporate Peavey's legendary low-noise, low-distortion design. Offering flexible configurations and rugged construction, PV series crossovers also feature variable state filter controls, and XLR inputs and outputs for balanced operation.

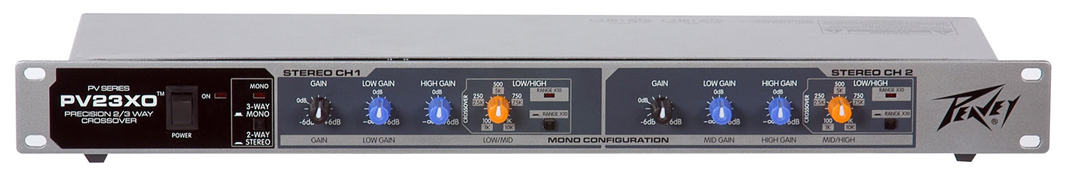

PV 23XO

Overview

PV 23XO gives the operator the flexibility to establish a two-way stereo system or run in a three-way mono configuration.



Features

24 dB filters and mute switches

Fully-adjustable crossover frequencies and levels

• XLR input and output connectors

• Internal power supply

• 2-way stereo or 3-way mono

• Weight Unpacked: 4.41 lb(2 kg)

• Weight Packed: 5.29 lb(2.4 kg)

• Width Packed: 7.25"(18.415 cm)

• Height Packed: 20.5"(52.07 cm)

Depth Packed: 4.25"(10.795 cm)

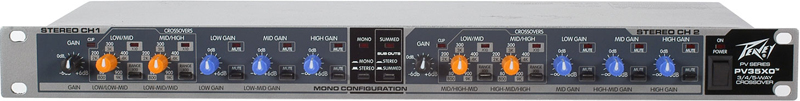

PV 35XO

Overview

The PV 35XO gives the operator the flexibility to establish a three-way stereo system or run in a four-way and even a five-way mono configuration.



Features

24 dB filters and mute switches

4-way and 5-way mono operation

Variable state filter controls

24dB/octave LR filters

Mute capabilities for each output level control

XLR (balanced input and outputs on each channel, Phase inversion switch on              each band-pass output (except low sum)

Low sum output jack to sum the low frequency, stereo content

3-way stereo operation

Weight Unpacked: 5.00 lb(2.268 kg)

Weight Packed: 7.00 lb(3.175 kg)

Width Packed: 4"(10.16 cm)

Height Packed: 20.25"(51.435 cm)

Depth Packed: 8.62"(21.8948 cm)
