VSX™ Series


The VSXe processors are DSP-based, loudspeaker management systems that boast a 96kHz sample rate and a floating point DSP processor for quiet accurate filter response. The crossover filters are fully adjustable and any input can be routed to any output. The VSX® Editor Program for PC allows complete remote setup and operation via the front panel USB port or by the rear panel Ethernet network connection. Files can also be saved and loaded using this interface software.

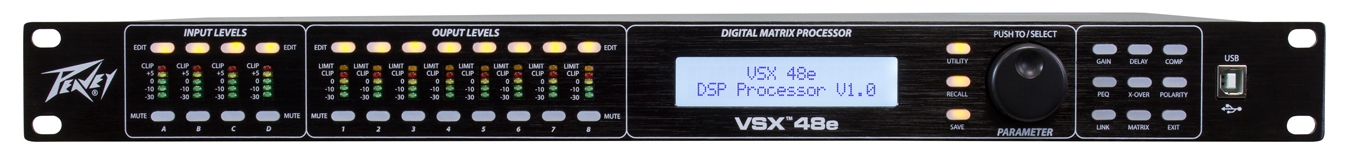

VSX 48E

Features

• Balanced Inputs: VSX 48e 4

• 4 XLR balanced inputs and 8 XLR balanced outputs VSXe 48

• Maximum input and output level +20 dBu, XLR balanced inputs and outputs

• Frequency response 20 Hz to 20 kHz +0, -1 dB

• 5 segment LED meters with limit indication on each output

• Every input features Gain, Mute, HP and LP filters, 8 bands of PEQ, polarity and          Delay (680 mS)

• Security lock

• Dynamic range input to output greater than 109 dB (A-weighted) or 107 dB              (unweighted)

• USB B port for setup and control

• 24 bit Delta-Sigma A/D and D/A converters

• Every output features: 9 bands of PEQ, gain, compressor/limiter, polarity, Delay        (680 mS), mute, and crossover/band-pass filters

• Ethernet port for setup and control

• Channels can be linked for simplified stereo operation

• 96 kHz Sample rate

• Signal generator (sine, white noise, pink noise)

• PC Editor Programs allow complete remote setup and operation via USB or                Ethernet

• Crossover/ Band-pass filters feature Butterworth, Bessel or Linkwitz-Riley                   alignments from 1st order (6 dB/Oct) to 8th order (48 dB/Oct)

• Balanced Outputs: VSX 48e 8

• EQ filter types include: PEQ, Low-Shelf, Hi-Shelf, Low-Pass, High-Pass, All-Pass1       and All-Pass2

• 5 segment LED meters on each input

• THD+N < 0.01% at 1 kHz

• Weight Unpacked: 5.80 lb(2.63 kg)

• Weight Packed: 7.72 lb(3.5 kg)

• Width Packed: 11.69"(29.6926 cm)

• Height Packed: 21.14"(53.6956 cm)

• Depth Packed: 4.9"(12.446 cm)



VSX 26E

Features

• Balanced Inputs: VSX 26e 2

• EQ filter types include: PEQ, Low-Shelf, Hi-Shelf, Low-Pass, High-Pass, All-Pass1       and All-Pass2

• Crossover/Band-pass filters feature Butterworth, Bessel or Linkwitz-Riley                   alignments from 1st order (6 dB/Oct) to 8th order (48 dB/Oct)

• Signal generator (sine, white noise, pink noise)

• Channels can be linked for simplified stereo operation

• Every output features: 9 bands of PEQ, gain, compressor/limiter, polarity, Delay        (680 mS), mute, and crossover/band-pass filters

• 5 segment LED meters with limit indication on each output

• 2 XLR balanced inputs and 6 XLR balanced outputs

• Maximum input and output level +20 dBu, XLR balanced inputs and outputs

• Frequency response 20 Hz to 20 kHz +0, -1 dB

• THD+N < 0.01% at 1 kHz

• Every input features Gain, Mute, HP and LP filters, 8 bands of PEQ, polarity and          Delay (680 mS)

• Security lock

• Dynamic range input to output greater than 109 dB (A-weighted) or 107 dB              (unweighted)

• USB B port for setup and control

• 24 bit Delta-Sigma A/D and D/A converters

• Ethernet port for setup and control

• 96 kHz Sample rate

• PC Editor Programs allow complete remote setup and operation via USB or                Ethernet

• Balanced Outputs: VSX 26e 6

• 5 segment LED meters on each input

• Weight Unpacked: 5.80 lb(2.63 kg)

• Weight Packed: 7.72 lb(3.5 kg)

• Width Packed: 11.69"(29.6926 cm)

• Height Packed: 21.14"(53.6956 cm)

• Depth Packed: 4.9"(12.446 cm)

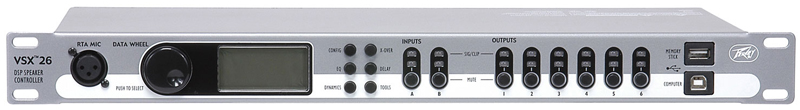

The VSX 26 is a fully progammable 32-bit audio processing and louspeaker management control system. Considerably more powerful than similarly priced units, the VSX 26 provides a versatile and economical alternative for system designers.



VSX 26

Features

• 48 kHz sample rate, 24-bit 256x over-sampled Delta-Sigma AD, DA

• USB A & B ports for memory storage and computer interface (PC and Mac)

• XLR inputs and outputs, AES-EBU digital input

• +24 dBu inputs and outputs

• Phantom power +48 volt

• Built-in signal generator (white, pink, sine)

• Easy preset and system updates via Internet

• Fully adjustable crossover points

• Easy-to-read LCD screen

• Features per input: 27-band Graphic EQ Autograph® algorithm for automatic EQ      settings, Compressor/Limiter, Delay (340 ms)

• Features per output: Crossover/Bandpass filter (Butterworth, Bessel, Linkwitz-          Riley), Parametric EQ (5-band, HP, LP Notch, Horn EQ, All-Pass),  Compressor            /Limiter , Delay with polarity inversion

• 2 input/6 output loudspeaker DSP management system

• Weight Unpacked: 7.00 lb(3.175 kg)

• Weight Packed: 9.00 lb(4.082 kg)

• Width Packed: 4"(10.16 cm)

• Height Packed: 23.62"(59.9948 cm)

• Depth Packed: 11.75"(29.845 cm)
