Engineered for optimal sound reproduction with proven reliability continuing a 30-year legacy, Peavey SP enclosures feature patented asymmetrical Quadratic Throat Waveguide™ technology that helps deliver pristine, precise sound; Black Widow® loudspeakers with Kevlar®-impregnated cones, 4" ribbon-wire voice coils and exclusive field-replaceable baskets; the patented Radialinear™ Planar Phase Correction System; and titanium compression drivers with ferrofluid cooling.

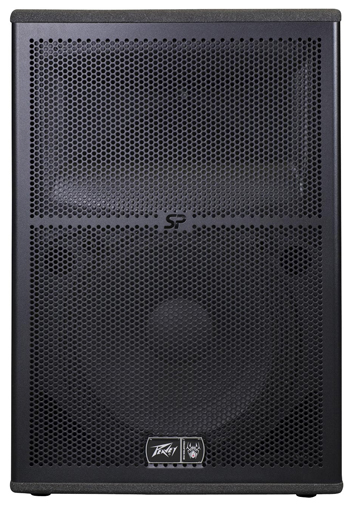

SP 2BX

Features

• 2-way full-range, bi-ampable sound reinforcement system

• 54 Hz to 17 kHz

• Patented Asymmetrical Quadratic Throat Waveguide™ technology

• Asymmetrical horn aim their coverate patterns 10 degrees upward and 30                  degrees downward- directing sound to your audience, not over their heads.

• 1000 watts program, 2000 watts peak

• Sound Guard™ III tweeter protection

• Full-range inputs include a Neutrik® Speakon® 4 pin jack and two 1/4 inch phone    jacks

• Bi-amp input via 4-pin switching Neutrik Speakon

• Trapezoidal enclosure

• HammerHead® durable covering material

• 15 inch BWX Black Widow® 4 inch voice coil woofer

• Stand-mount adapter

• RX™22 compression driver with ferrofluid cooling

• Patented Radialinear Planar Phase Correction System

• Weight Unpacked: 82.67 lb(37.5 kg)

• Weight Packed: 92.59 lb(42 kg)

• Width Packed: 26"(66.04 cm)

• Height Packed: 34"(86.36 cm)

• Depth Packed: 23.375"(59.3725 cm)

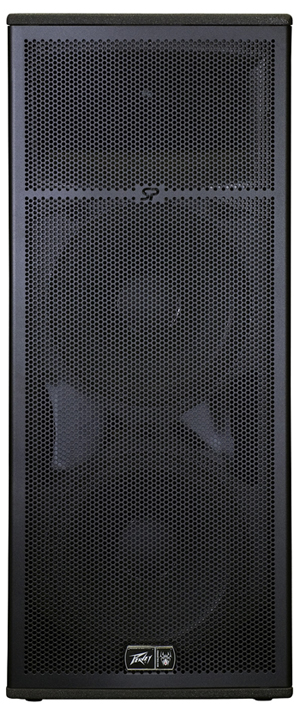

SP 4BX

Features

• Quasi-three-way, full-range, bi-ampable sound reinforcement system

• 2000 watts program, 4000 watts peak

• Patented Asymmetrical Quadratic Throat Waveguide™ technology

• Patented Radialinear Planar Phase Correction System

• Sound Guard™ III tweeter protection

• Two 15 inch BWX Black Widow® 4 inch voice coil woofers

• Sensitivity: 100 dB (1W/1m) anechoic

• Full-range inputs include a Neutrik® Speakon® 4 pin jack and two 1/4 inch phone    jacks

• Bi-amp capability via internal wiring jumper

• Trapezoidal enclosure

• HammerHead® durable covering material

• RX™ 22 compression driver with ferrofluid cooling

• Frequency Response: 52 Hz to 17 kHz (+/- 3 dB)

• Pocket Casters

• Weight Packed: 133.49 lb(60.55 kg)

• Width Packed: 25.75"(65.405 cm)

• Height Packed: 52.37"(133.0198 cm)

• Depth Packed: 23"(58.42 cm)

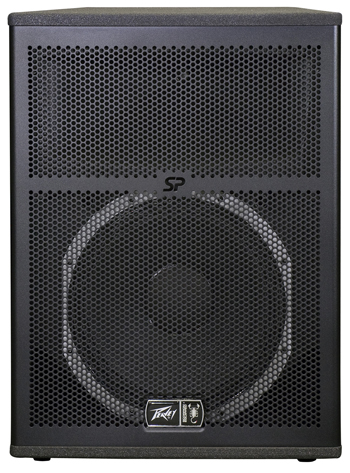

SP 5BX

Features

• Two-way, full-range sound reinforcement system

• Frequency Response: 69 Hz to 17 kHz,+/-3dB

• 10 dB point: 50 Hz

• Sensitivity: 98 dB (1W/1m) anechoic

• 800 watts program, 1600 watts peak

• RX™ 22 compression driver with ferrofluid cooling

• Patented Radialinear Planar Phase Correction System

• Sound Guard™ III tweeter protection

• Full-range inputs include a Neutrik® Speakon® 4 pin jack and two 1/4 inch phone     jacks

• Trapezoidal enclosure

• HammerHead® durable covering material

• 15 inch Scorpion® woofer with field-replaceable basket

• Stand-mount adapter

• Patented Asymmetrical Quadratic Throat Waveguide™ technology

• Weight Packed: 77.20 lb(35.017 kg)

• Width Packed: 23"(58.42 cm)

• Height Packed: 30.75"(78.105 cm)

• Depth Packed: 19.75"(50.165 cm)

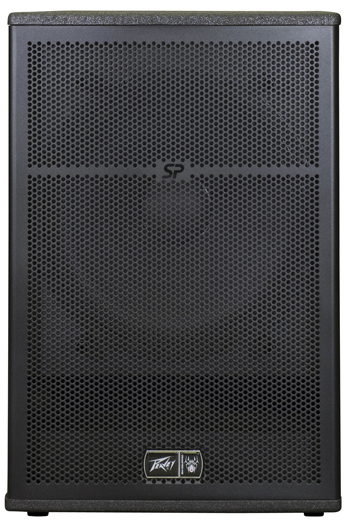

SP 118BX

Features

• Two-way, full-range sound reinforcement system

• Frequency Response: 69 Hz to 17 kHz,+/-3dB

• 10 dB point: 50 Hz

• Sensitivity: 98 dB (1W/1m) anechoic

• 800 watts program, 1600 watts peak

• RX™ 22 compression driver with ferrofluid cooling

• Patented Radialinear Planar Phase Correction System

• Sound Guard™ III tweeter protection

• Full-range inputs include a Neutrik® Speakon® 4 pin jack and two 1/4 inch phone     jacks

• Trapezoidal enclosure

• HammerHead® durable covering material

• 15 inch Scorpion® woofer with field-replaceable basket

• Stand-mount adapter

• Patented Asymmetrical Quadratic Throat Waveguide™ technology

• Weight Packed: 77.20 lb(35.017 kg)

• Width Packed: 23"(58.42 cm)

• Height Packed: 30.75"(78.105 cm)

• Depth Packed: 19.75"(50.165 cm)
