QF™ Series


The QF family features one dual channel model and one single channel unit, all incorporating Peavey's legendary low noise, low distortion design. Ruggedly constructed, QF Series EQs have 45 mm, center-detented control sliders enclosed in metal for durability. These two rack-space units also offer +/-15 dB gain control and an LED display indicating output level. Other shared features include switchable low-cut filters, +21 dBu balanced inputs and outputs, and bypass switches. QF Series equalizer filters are set at ISO center frequencies within 3% accuracy. Whether on stage, in the studio, or simply tweaking your home hi-fi system, the QF Series has an EQ for you.

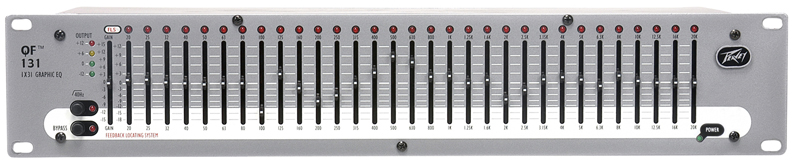

QF 131

Features

• 31-band graphic EQ with +12 dB boost/-18 dB cut per band

• 1/3 octave filter sets

• Constant Q filters

• Output level LEDs (-12 to +24 dB)

• 18 dB per octave 40 Hz low-cut filter with status LED

• 20 Hz to 20 kHz effective EQ range

• XLR and 1/4 inch TRS inputs/outputs for balanced or unbalanced operation

• Bypass switch with status LED

• New improved FLS® circuitry for greater sensitivity

• Weight Unpacked: 9.00 lb(4.082 kg)

• Weight Packed: 11.00 lb(4.989 kg)

• Width Packed: 6.12"(15.5448 cm)

• Height Packed: 22.25"(56.515 cm)

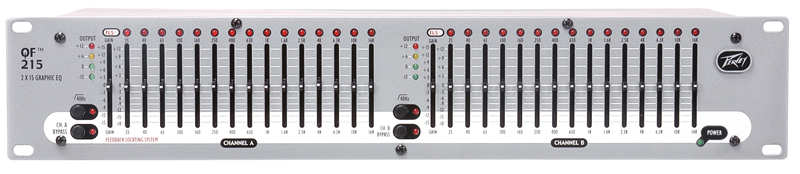

QF 215

Features

• Dual channel (15 bands per channel)

• ISO center frequencies within 3% accuracy

• 25 Hz to 16 kHz effective equalization range

• 45 mm, center-detent control sliders enclosed in metal for durability

• Constant Q filters

• 2/3 octave filter sets

• 18 db per octave 40Hz low-cut filter with status LED

• +/-15 dB gain control

• Improved Peavey FLS® (Feedback Locating System)

• XLR and 1/4 inch TRS inputs/outputs for balanced or unbalanced operation

• 2 RU

• 12 dB boost/18 dB cut per band

• Weight Unpacked: 9.00 lb(4.082 kg)

• Weight Packed: 11.00 lb(4.99 kg)

• Width Packed: 6.12"(15.5448 cm)

• Height Packed: 22.25"(56.515 cm)

• Depth Packed: 10.25"(26.035 cm)
